Seats 5 Adults
6' 10" x 6' 10" x 33"

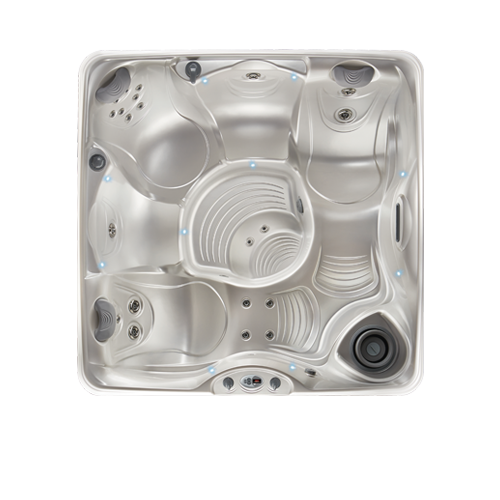

With premium lounge seating and room for five, the Tarino has strategically and thoughtfully placed jets. Enjoy the 360∞ view and stretch out your legs in the footwells and lounge-designed seating for the ultimate soothing experience enhanced by the added ambience of an in-spa waterfall and additional lights.
|Dimensions||6' 10" x 6' 10" x 33"|
|Water capacity||340 gallons / 1,287 liters|
|Weight (Dry)||705 lbs.|
|Weight (Filled)||4,636 lbs.*|
|Hydromassage Jets||2 AdaptaSsage® jets , 4 AdaptaFlo® jets , 17 Euro® jets|
|Jet Pumps||ReliaFlo® 1.5 HP dual-speed (3.2 BHP**)|
|Control System||Solid-state electronic with LED display|
|Heater Output||1,000 watt, 115v or 4,000 watt, 230v|
|Electrical Requirements||115v / 20 amp plug-in*** (Includes GFCI-protected power cord. Requires dedicated 20 amp circuit.)|
|Filter Size||30 sq. ft.|
|FROG Water Care System||Cartridge-ready|
|Monarch CD Ozone System||Available option|
|Water Feature||Acquarella® waterfall|
|Caldera Entertainment Options||Aquatic Melodies® Entertainment|
|Mulit-color LED Lighting||Ten multi-color points-of-light, interior (dimmable)|
|Energy Efficiency||Fully-insulated with FiberCor™ material, 2 lb. density; Certified to the California Energy Commission (CEC) in accordance with California law|
|Insulating Cover||3.5" to 2.5" tapered, 1.5 lb.-density foam core|
|Spa Shell and EcoTech® Cabinet Options||Champagne Opal, Tuscan Sun, White Pearl or White Sands with Coastal Gray, Espresso or Redwood, Tuscan Sun with Coastal Gray or Espresso|
**Brake Horsepower (BHP) is the horsepower a pump motor achieves for a brief period upon start-up.
360 ViewClick mouse and drag left or right to rotate.
Color Selector Tool
Click on a shell color swatch to view available siding color options for this hot tub model.
Watkins Manufacturing Corporation (“Watkins”) warrants to the original consumer purchaser (“you”) the following about your new Palatino®, Marino®, Vanto® , Tarino™ or Aventine®, Vacanza Series spa, when purchased from an authorized dealer/service provider (“dealer”).
5 YEAR NO LEAK SHELL WARRANTY
Watkins warrants against water loss due to defects in the spa shell for five years.
2 YEAR SHELL SURFACE WARRANTY
Watkins warrants the acrylic surface material to be free from defects in material and workmanship for two years.
2 YEAR NO LEAK PLUMBING WARRANTY
Watkins warrants the Vacanza Series spas against leaks caused by defects in manufacturing and workmanship for two years. This warranty specifically covers leaks from the wall fittings, jet fittings, internal plumbing, internal glue joints, drains, hoses and all bonded parts.
2 YEAR COMPONENT WARRANTY
Watkins warrants the electrical components, pump(s), and other Vacanza Series spa components against defects in materials and workmanship for two years. Some parts, most of which can be changed out without the use of tools, such as filter cartridges, filter lid, spa pillows, and cover locks are not included in this warranty, but are warranted to be free from defects in materials and workmanship at the time of delivery. Spa covers and other spa accessories are specifically excluded from this warranty, although they may be covered under other warranties. Please check with your Caldera dealer for details.
2 YEAR ECOTECH® CABINET WARRANTY
Watkins warrants the EcoTech simulated wood cabinet material to be free from defects in materials and workmanship for two years. This warranty specifically covers the cabinet’s structural integrity, including the material and assembly.
The EcoTech cosmetic finish is warranted to be free from defects in materials and workmanship at the time of initial delivery. Fading and weathering of the surface may naturally occur over time and are not considered defects. To restore the cabinet’s appearance, refer to the spa Owner’s Manual for proper care and maintenance instructions.
2 YEAR LED LIGHT ASSEMBLY WARRANTY – PALATINO, MARINO,VANTO, & TARINO SPAS
Watkins warrants the LED light assemblies of the Palatino and Marino, Vanto and Tarino spas, which consists of all lights within the spa, including the main light, to be free from defects in materials and workmanship for two years.
1 YEAR LED LIGHT ASSEMBLY WARRANTY – AVENTINE SPA
Watkins warrants the LED light assemblies of the Aventine spa, which consists of all lights within the spa, including the main light, to be free from defects in materials and workmanship for one year.
1 YEAR FROG® WARRANTY
Watkins warrants the FROG water care system in the Vacanza Series spas to be free from defects in materials and workmanship for one year.
The following applies to all of the warranties listed:
EXTENT OF WARRANTY
This warranty extends only to the original consumer purchaser of the Caldera spa when purchased and originally installed within the boundaries of the United States. This warranty begins on your delivery date of the spa, but in no event later than one year from the date of purchase.
This warranty terminates upon any transfer of ownership, or if the spa is installed or relocated outside the boundaries of the United States by the original consumer purchaser prior to the expiration of the warranty period.
To make a claim under this warranty, contact your dealer. In the event you are unable to obtain service from the dealer, please contact Watkins Manufacturing Corporation at 1280 Park Center Drive, Vista, California, 92081, Attn: Customer Service Department (800) 669-1881 or via e-mail, email@example.com. You must give Watkins and/or your dealer written notice of any warranty claim, along with a copy of your original purchase receipt indicating the date of the purchase, within ten (10) days of the time you discover the claim. Watkins reserves the right to inspect the malfunction or defect on location.
Watkins or its Authorized Service Agent will repair any defects covered by this warranty. Except as described herein, you will not be charged for parts, labor or the freight costs for parts necessary to repair the spa for defects covered by this warranty. In some cases, the servicing dealer may charge you a reasonable repairperson travel/service charge that is not covered by this warranty. Please contact the dealer for information regarding any such charges.
Except as described above, this warranty does not cover defects or damage due to normal wear and tear, improper installation, alteration without Watkins’ prior written consent, accident, acts of God, misuse, abuse, commercial or industrial use, use of an accessory not approved by Watkins, failure to follow Watkins’ Pre-Delivery Instructions or Owner’s Manual, or repairs made or attempted by anyone other than an authorized representative of Watkins. Alteration includes, but is not limited to, any component or plumbing change, or electrical conversion. Visit www.calderaspas.com or contact your dealer for a list of manufacturer approved accessories.
TO THE EXTENT PERMITTED BY LAW, WATKINS SHALL NOT BE LIABLE FOR LOSS OF USE OF THE SPA OR OTHER INCIDENTAL OR CONSEQUENTIAL COSTS, EXPENSES, OR DAMAGES, INCLUDING BUT NOT LIMITED TO THE REMOVAL OF ANY DECK OR CUSTOM FIXTURE OR ANY COST TO REMOVE OR REINSTALL THE SPA, IF NEEDED. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitations may not apply to you. ANY IMPLIED WARRANTIES, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO THE DURATION OF THE APPLICABLE WARRANTY STATED ABOVE. Some states do not allow limitations on how long an implied warranty may last, so the above limitations may not apply to you.
This warranty gives you specific legal rights, and you may have other rights which vary from state to state.
